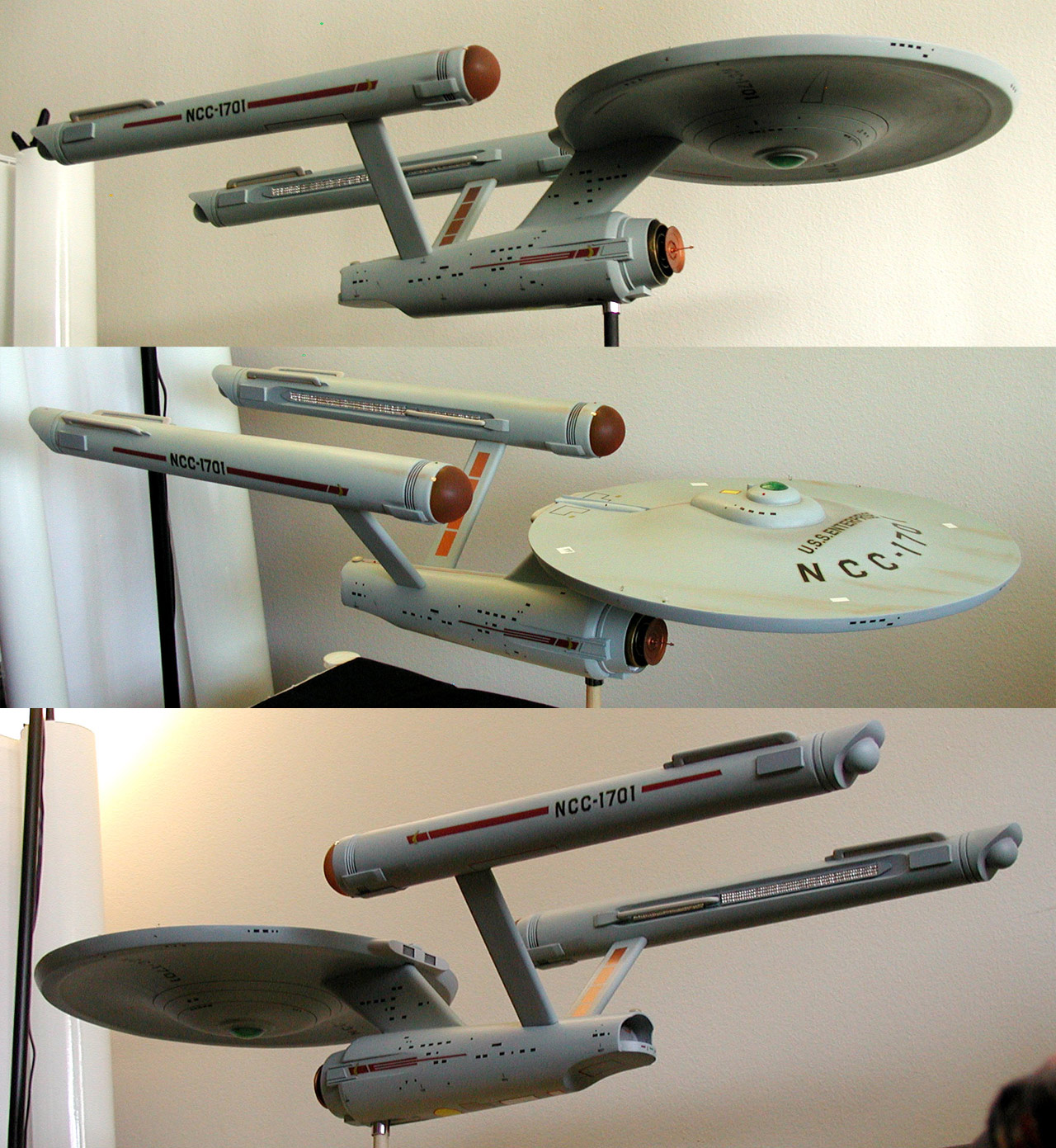

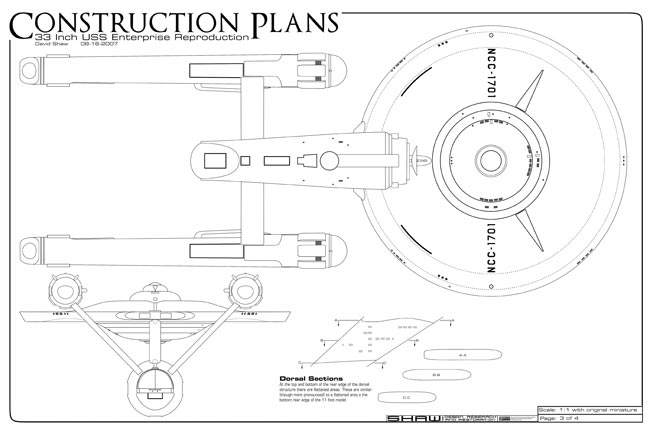

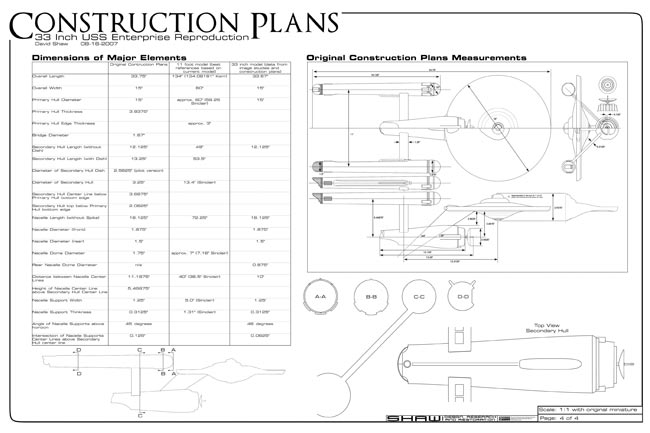

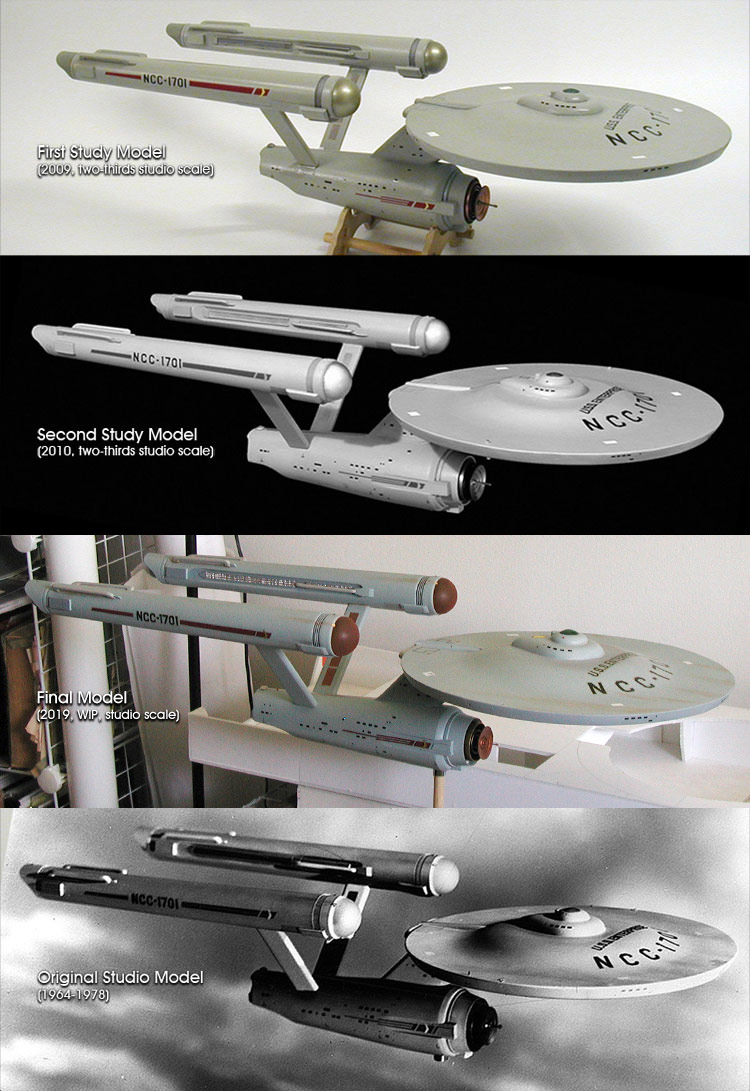

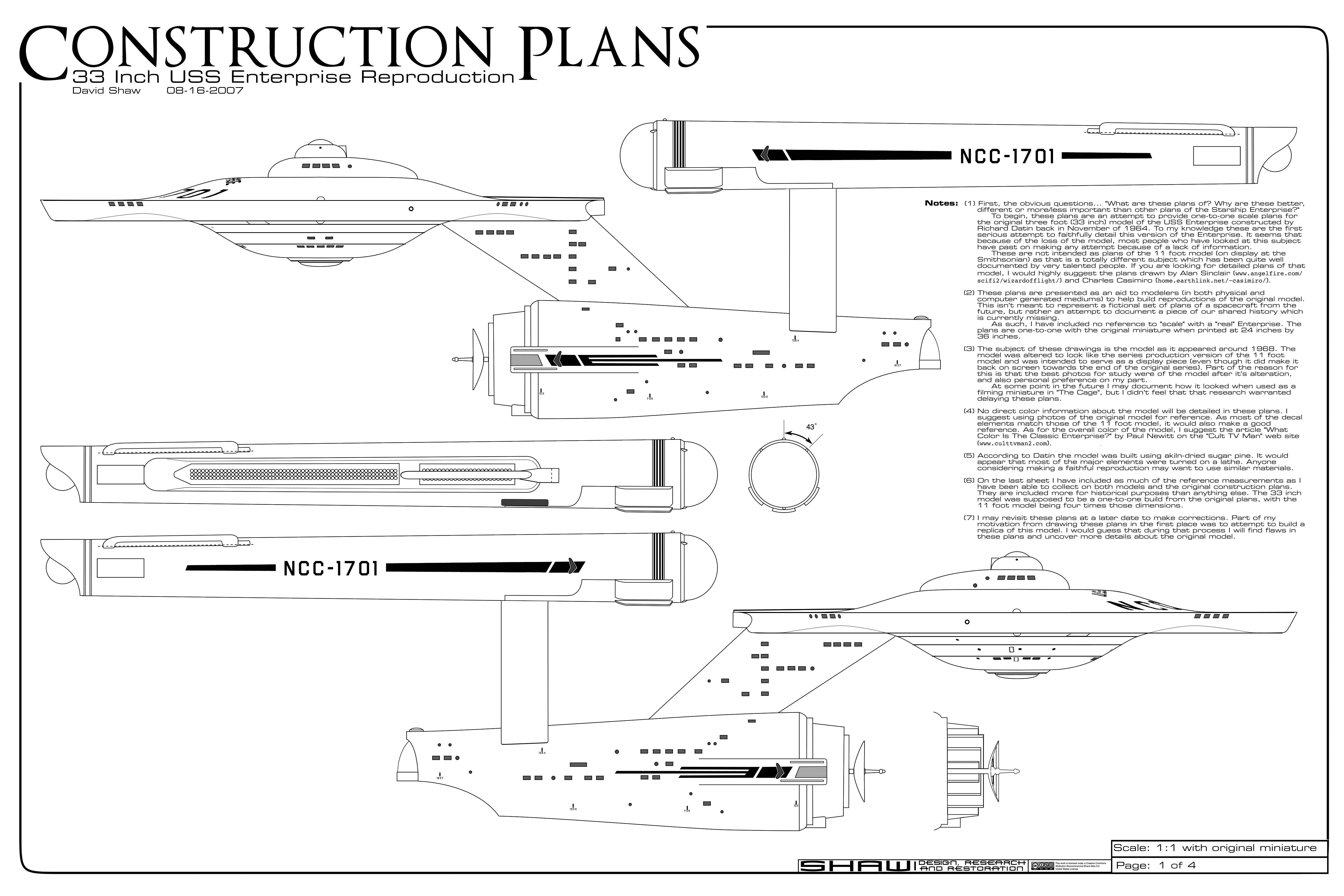

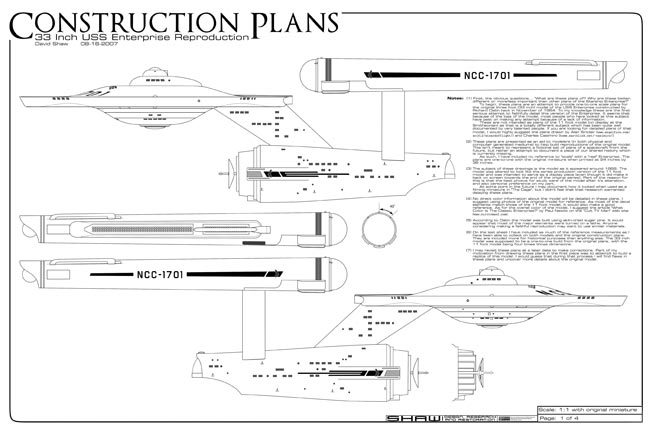

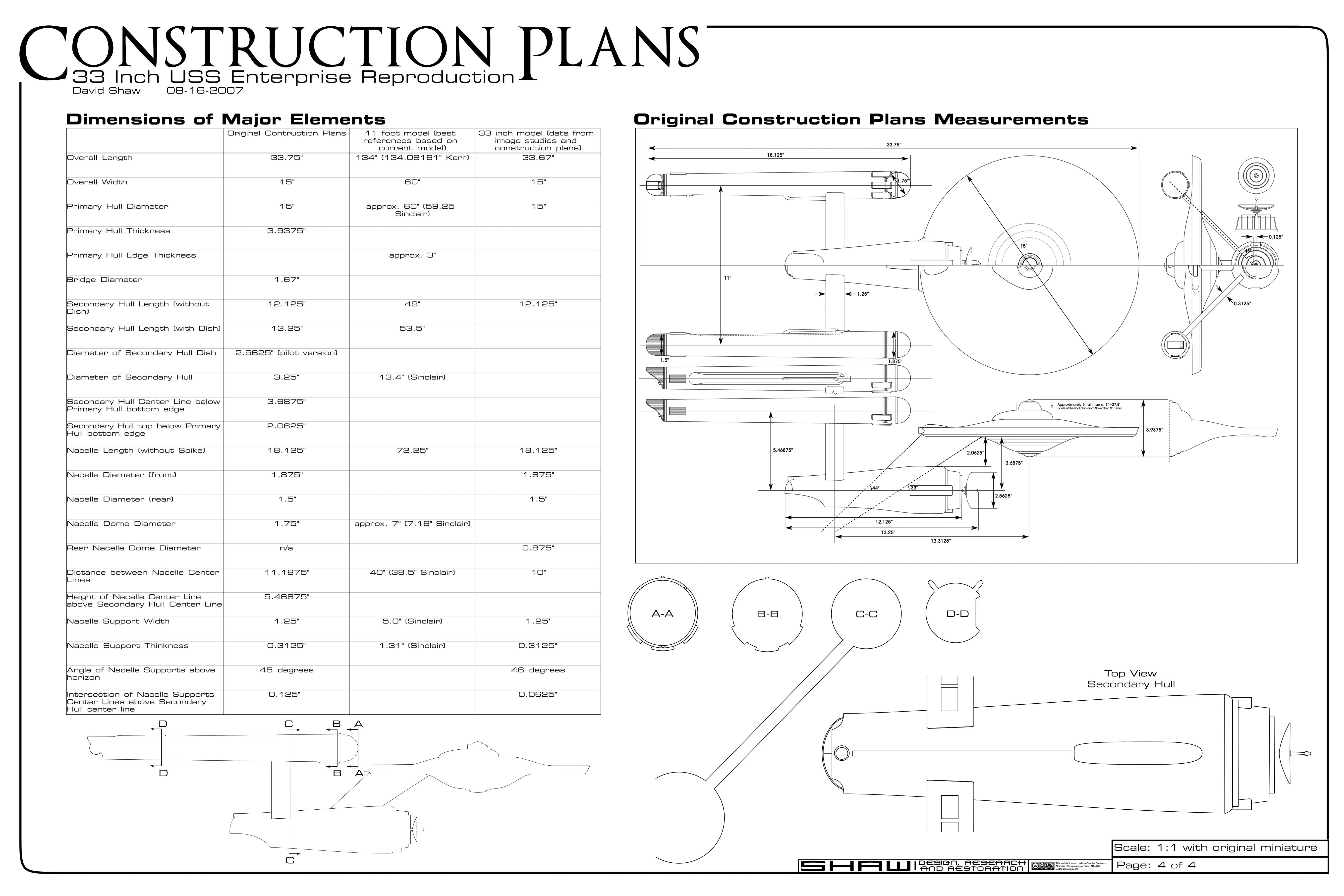

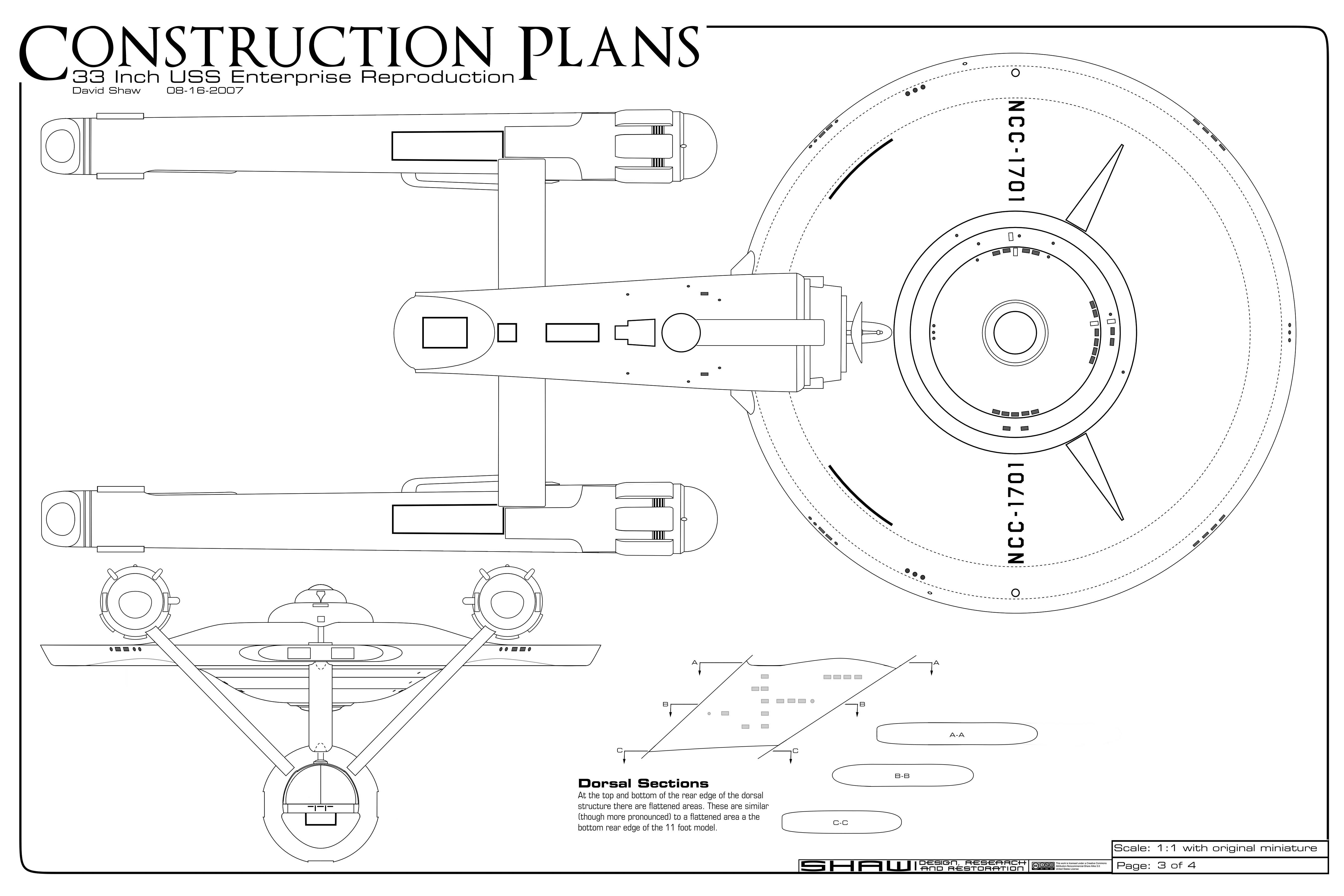

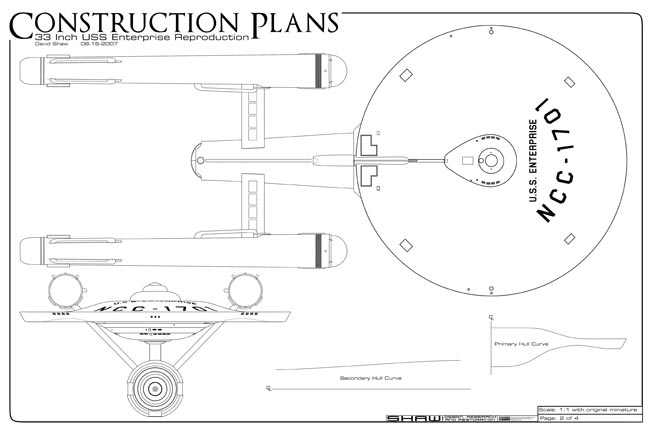

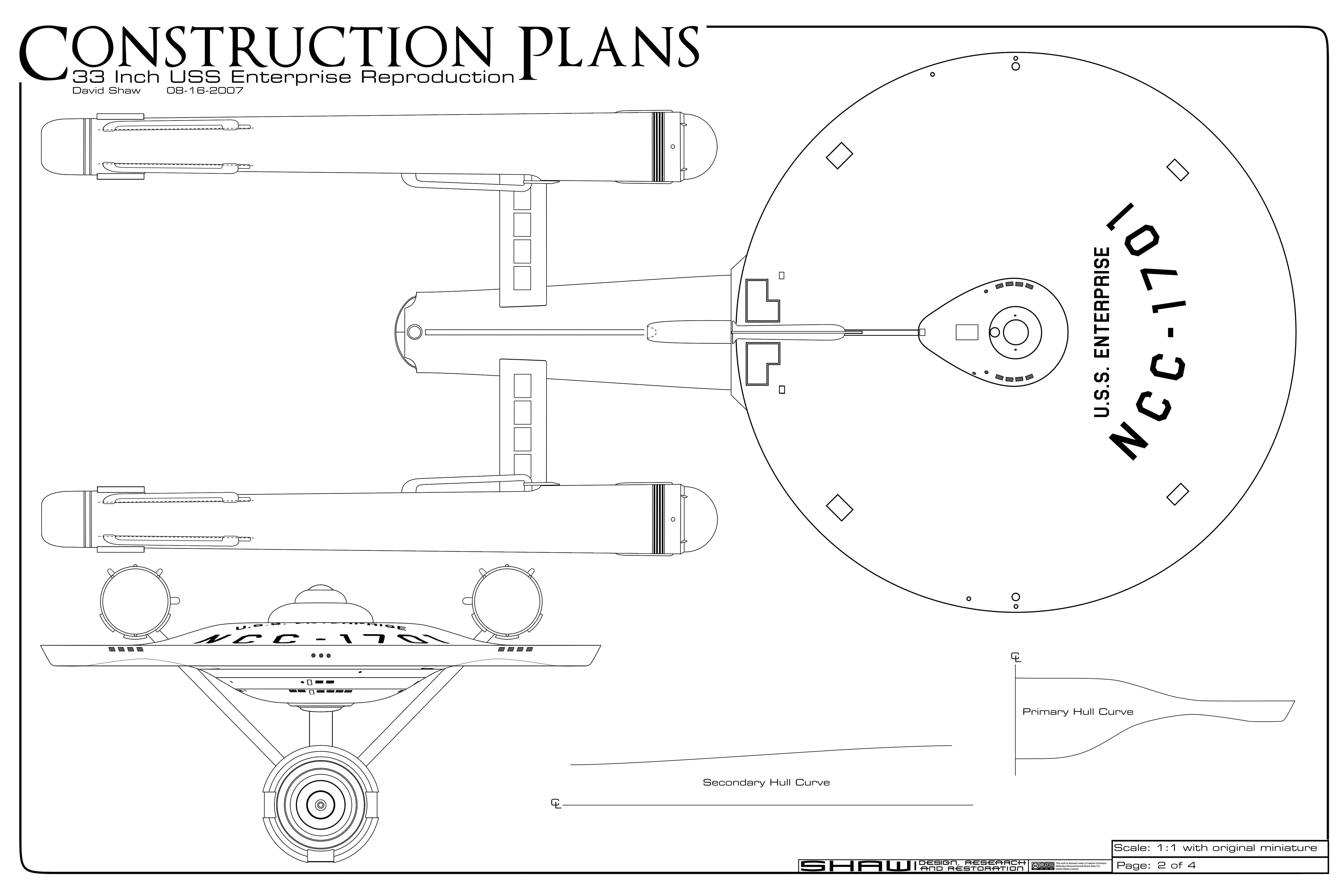

These are plans that I reverse engineered back in 2007 of the original studio model of the Enterprise. These represent the first revision of the plans based on information I had at the time. While flawed and out of date, these are still currently the only completely assembled collection of drawings I have available to share at this time.  Click to enlarge  Click to enlarge  Click to enlarge  Click to enlarge To test these plans against photos I had of the original model I used them to build a two-thirds scale study model. With information from this first model I made notes of changes/fixes and applied them to a second two-thirds scale study model. With the information from the second model and additional resources on the original acquired over the years, I started in on building a final one-to-one scale replica of the original. This series of images represents my progression towards replicating the original model...  And this is the current state of my progress on the one-to-one replica...  Click to enlarge Eventually I'll consolidate all my information into a final set of plans, which I'll post here. |
